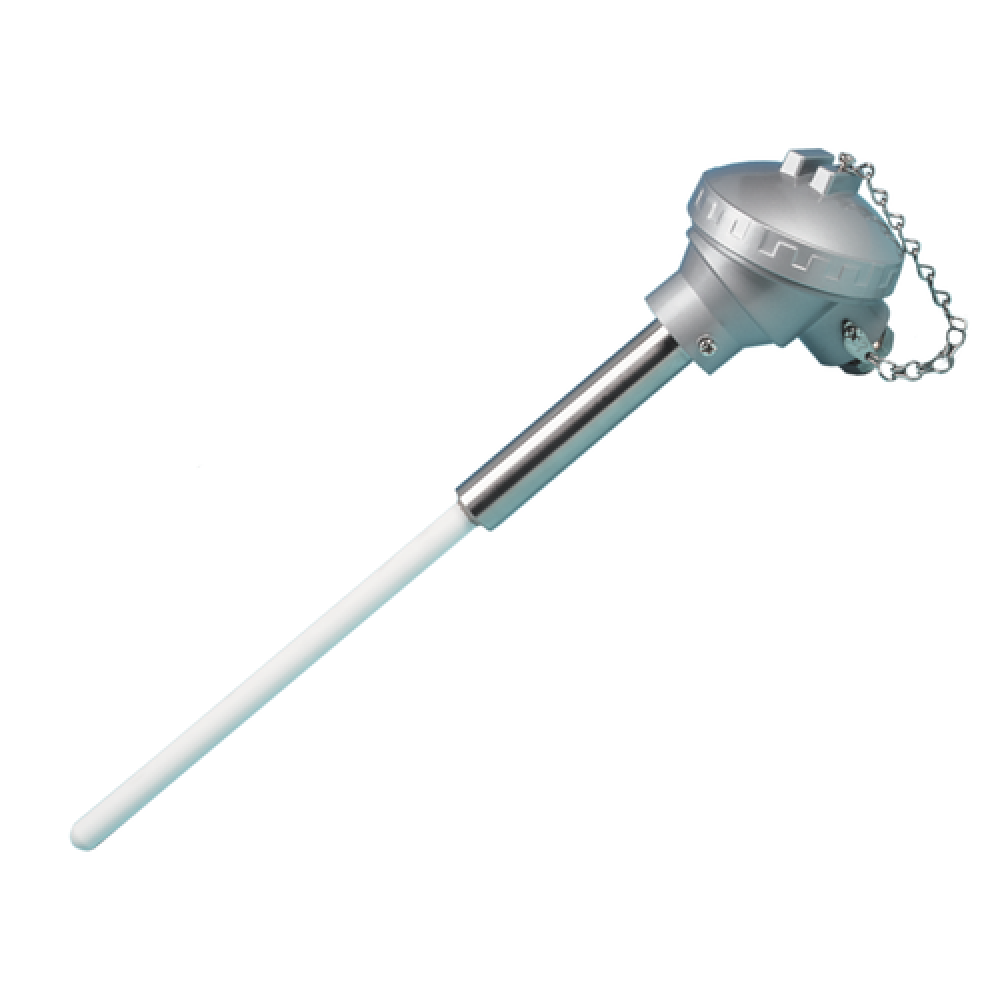

Noble Metal Thermocouple Type S,R,B
Thermocouple type S,B,R used in very high temperature applications. Maximum recommended operating temperature for Type S or R is 1600°C Type B is recommended for use at as high as 1800°C. Noble metal thermocouples should always be protected with ceramic tube, a secondary tube of alumina and a silicon carbide or metal outer tube as conditions require
-
Contact us
-
1017
- Products Information
- Comment
Thermocouple type S,B,R used in very high temperature applications. Maximum recommended operating temperature for Type S or R is 1600°C Type B is recommended for use at as high as 1800°C. Noble metal thermocouples should always be protected with ceramic tube, a secondary tube of alumina and a silicon carbide or metal outer tube as conditions require
|
No |
Type / Diameter (mm) |
Maximum Temperature |
|
1 |
S / 0.35 |
1350oC |
|
2 |
S / 0.50 |
1600oC |
|
3 |
R / 0.35 |
1350oC |
|
4 |
R / 0.50 |
1600oC |
|
5 |
B / 0.35 |
1600oC |
|
6 |
B / 0.50 |
1800oC |
|
No |
Type |
Material |
|
1 |
S |
Platinum/Rhodium (90%Pt, 10%Rh) (+ Positive Leg) |
|
2 |
R |
Platinum/Rhodium (87%Pt, 13%Rh) (+ Positive Leg) |
|
3 |
B |
Platinum/Rhodium (70%Pt, 30%Rh) (+ Positive Leg) |
