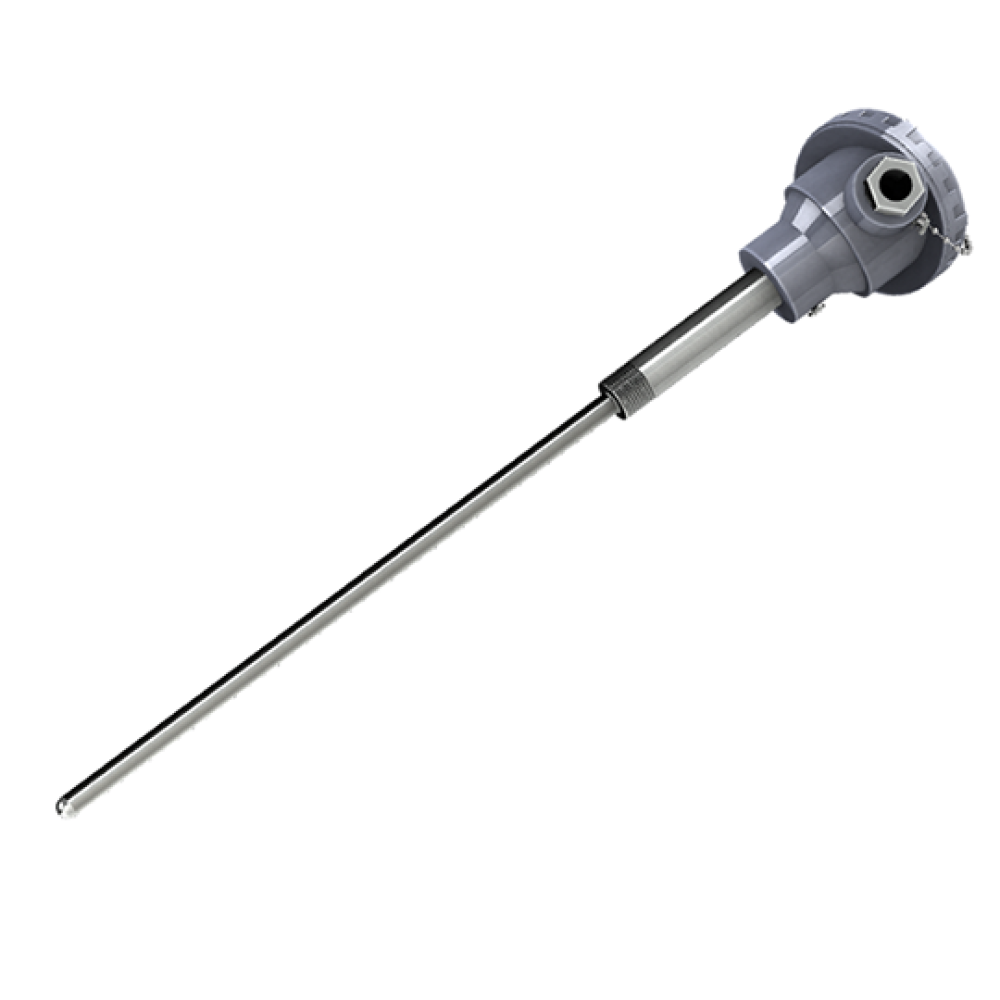

Base Metal Thermocouple Type K,T,N,J

Thermocouple temperature sensors can be made with various conductor materials for different temperature ranges and output characteristics.

Price:
Contact us
Views:
1013

Hotline 1
0973 013 066 Hotline 2

Zalo

Products Information
Comment

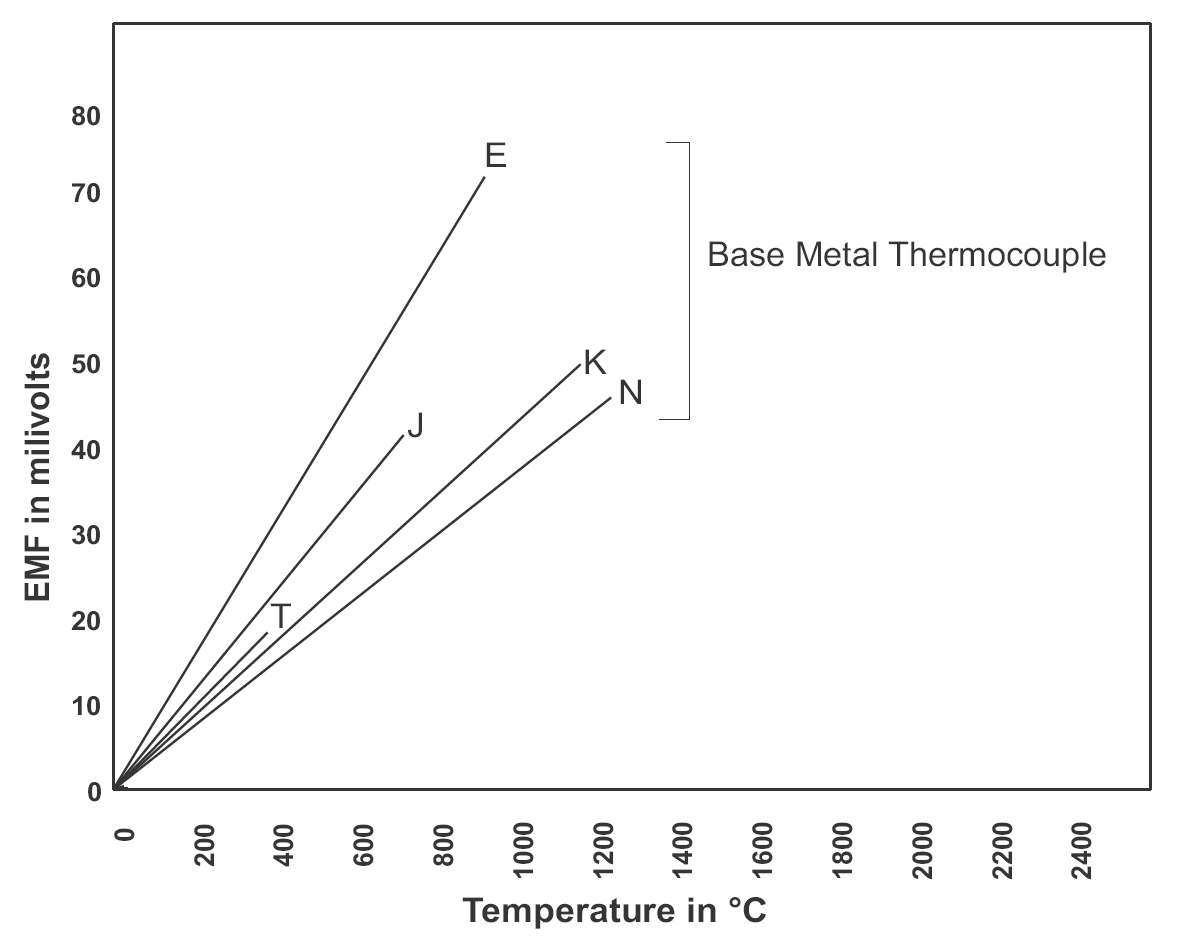

The thermocouple types J, K, T, E and N are the most commonly used type of thermocouple. They are used for common temperature measurements in liquid, gas, plastic mediums…

Measuring range up to 1200°C depending on protection tube material and thermocouple.

Thermocouple Type	Temperature Range (°C)
Thermocouple Type	Short Term Use	Continuous Use	Class 1 Tolerance*	Class 2 Tolerance*	Class 3 Tolerance*
E	−40 to +900	0 to +800	-40 to +800	-40 to +900	-200 to +40
J	−180 to +800	0 to +750	-40 to +750	-40 to +750	N/A
K	−180 to +1300	0 to +1100	-40 to +1000	-40 to +1200	-200 to +40
N	−270 to +1300	0 to +1100	-40 to +1000	-40 to +1200	-200 to +40
T	−250 to +400	−185 to +300	-40 to +350	-40 to +350	-200 to +40
